01 Technical Requirements ONYX
ONYX Editor
Hardware
Recommendation for 100 concurrent users
- 8 GB RAM
- 2 cores > 2 GHz
- 100 GB HDD
When using MAXIMA, it is recommended to have at least 16 GB RAM and 8 cores.
Software
We recommend Linux (64bit).
The following distributions are currently used for productive instances:
CentOS / Scientific Linux / Red Hat Enterprise Linux
Ubuntu LTS
Other distributions are possible.

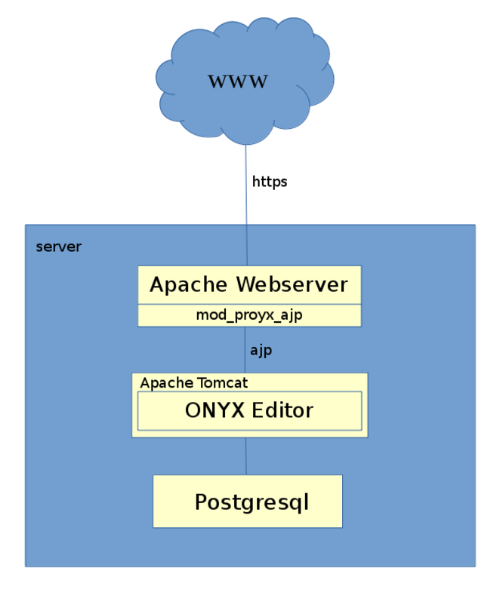

Web server: Apache Webserver + mod_ssl (jk od. proxy_ajp)
Database server: Postgresql (on demand MySQL)
Application server: Java 17, Apache Tomcat 9
The ONYX Testsuite has been developed in the programming language JAVA. It is also possible to use other operating systems, databases, and servlet containers.
ONYX Player and Reporter
Hardware
Recommendation for 100 concurrent users
- 8 GB RAM
- 2 cores > 2 GHz
- 200 GB HDD
When using MAXIMA, it is recommended to have at least 16 GB RAM and 8 cores.
Software
We recommend Linux (64bit).
The following distributions are currently used for productive instances:
- centOS / Scientific Linux / Red Hat Enterprise Linux
- Ubuntu LTS
Other distributions are possible.
Web server: Apache Webserver + mod_ssl (jk od. proxy_ajp)
Application server: Java 17, Apache Tomcat 9
The ONYX Testsuite has been developed in the programming language JAVA. It is also possible to use other operating systems, databases, and servlet containers.
